High performance self-contained photoelectric sensors. Available in thru beam, diffuse proximity, retro-reflective, polarised retro-reflective, fibre sensor and background suppression operation modes. Wide variety of housing designs and sensing characteristics. Available with AC or DC supply voltage. Transistor, solid-state or relay output.

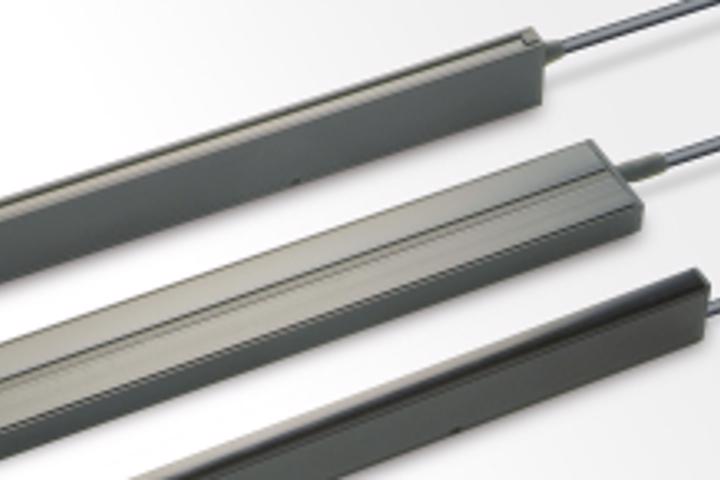

Multi beam light curtains available as self-contained or remote systems. Available in lengths from 50 to 300 cm. Offers sensing ranges of up to 10 metres. Profile in aluminium available in different designs. Parallel or cross scanning beams. Available with AC or DC supply voltage. Transistor, solid-state or relay output

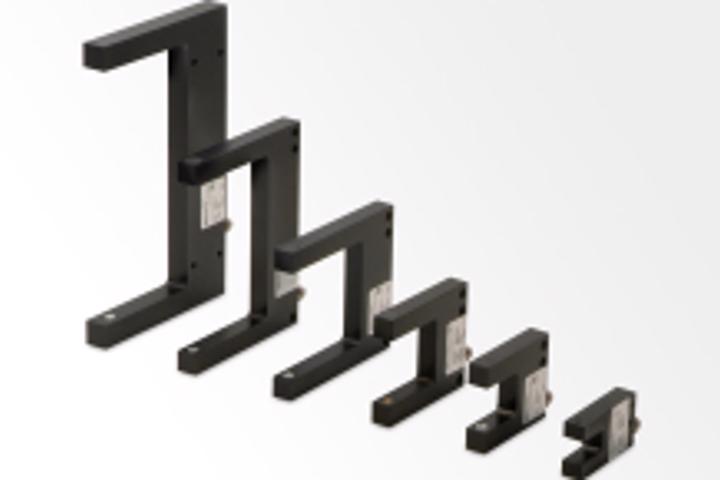

Optical fork sensors available with fork size ranging from 2 mm to 220 mm. Housed in sturdy, IP67 aluminium housing. Available with infrared, visible red or high-power infrared light source. Offers high operation frequency of up to 5000 Hz. Includes DC supply voltage and transistor output. Sensitivity adjustable via potentiometer.

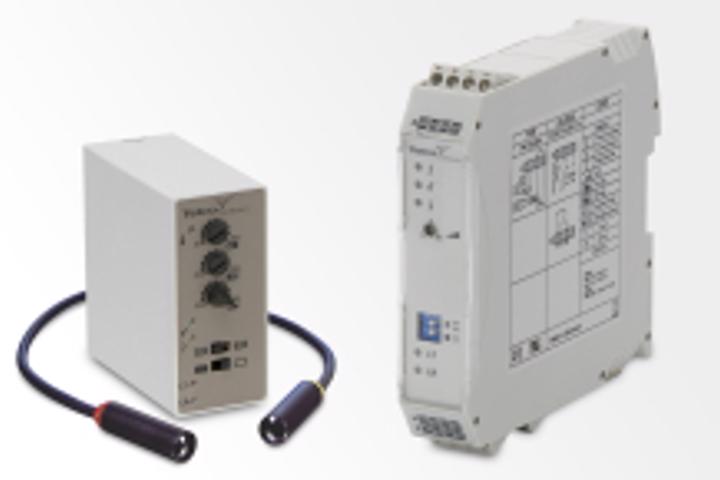

Photoelectric and multiplexed amplifiers operating in conjunction with Telco’s high performance remote photoelectric sensors. Wide variety of sensor housing designs/materials and sensing characteristics. Extensive range of amplifier types are available, offering various features and functions. Available in 1, 2, 3, 4 and 8 channel models.

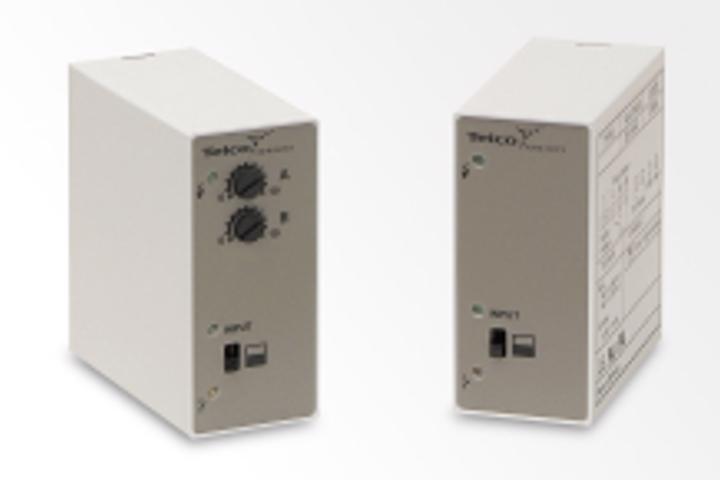

Power supply units offer AC/DC conversion and provides relay output. Available with on-off time delay, and offers various other features in different models. Compatible to be used with Telco’s self-contained photoelectric sensors, light curtains and optical fork sensors, where DC supply voltage is not available and/or relay output is required.

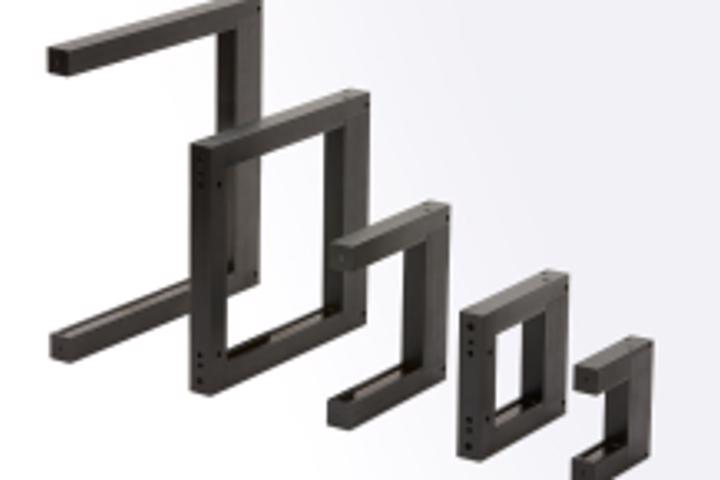

Optical frame sensors available with frane size ranging from 50 mm to 250 mm. Housed in sturdy, IP67 aluminium housing. Offers high operation frequency of 5000 Hz and high resolution from 0,5 mm. Includes DC supply voltage and transistor output. Sensitivity adjustable via potentiometer. Dynamic or static detection principle.

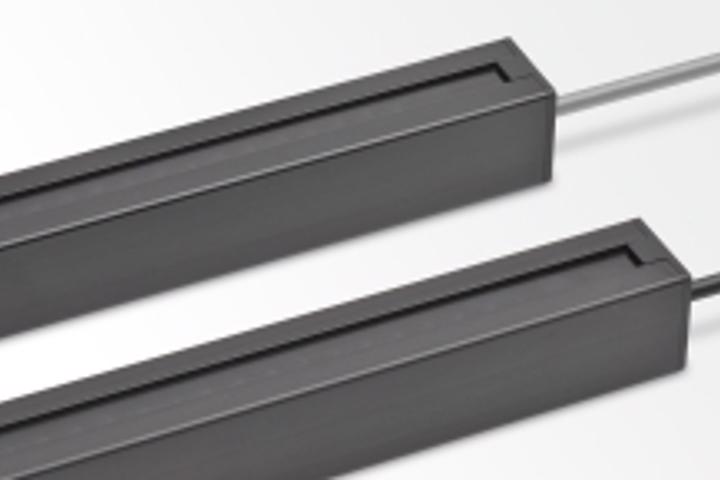

Multi beam, self-contained industrial light curtains. Available in lengths from 160 to 1980 mm. Offers sensing ranges of up to 10 metres. Sturdy aluminium, IP67 profile. Available with channel spacing of 5, 10 or 20 mm. Parallel or cross scanning beam, selectable. Offers DC supply voltage and solid-state relay output.
Multi beam, self-contained measuring light curtains. Available in lengths from 300 to 1980 mm. Offers sensing ranges of up to 10 metres. Sturdy aluminium, IP67 profile. Available with channel spacing of 5, 10 or 20 mm. DC supply voltage with analogue outputs (0-10V / 4-20mA) and up to 4 digital outputs. RS-485 serial communication. Fully programmable with Telco PC software.
