Photoelectric Sensors

High performance self-contained photoelectric sensors. Available in thru beam, diffuse proximity, retro-reflective, polarised retro-reflective, fibre sensor and background suppression operation modes. Wide variety of housing designs and sensing characteristics. Available with AC or DC supply voltage. Transistor, solid-state or relay output.

Thru Beam

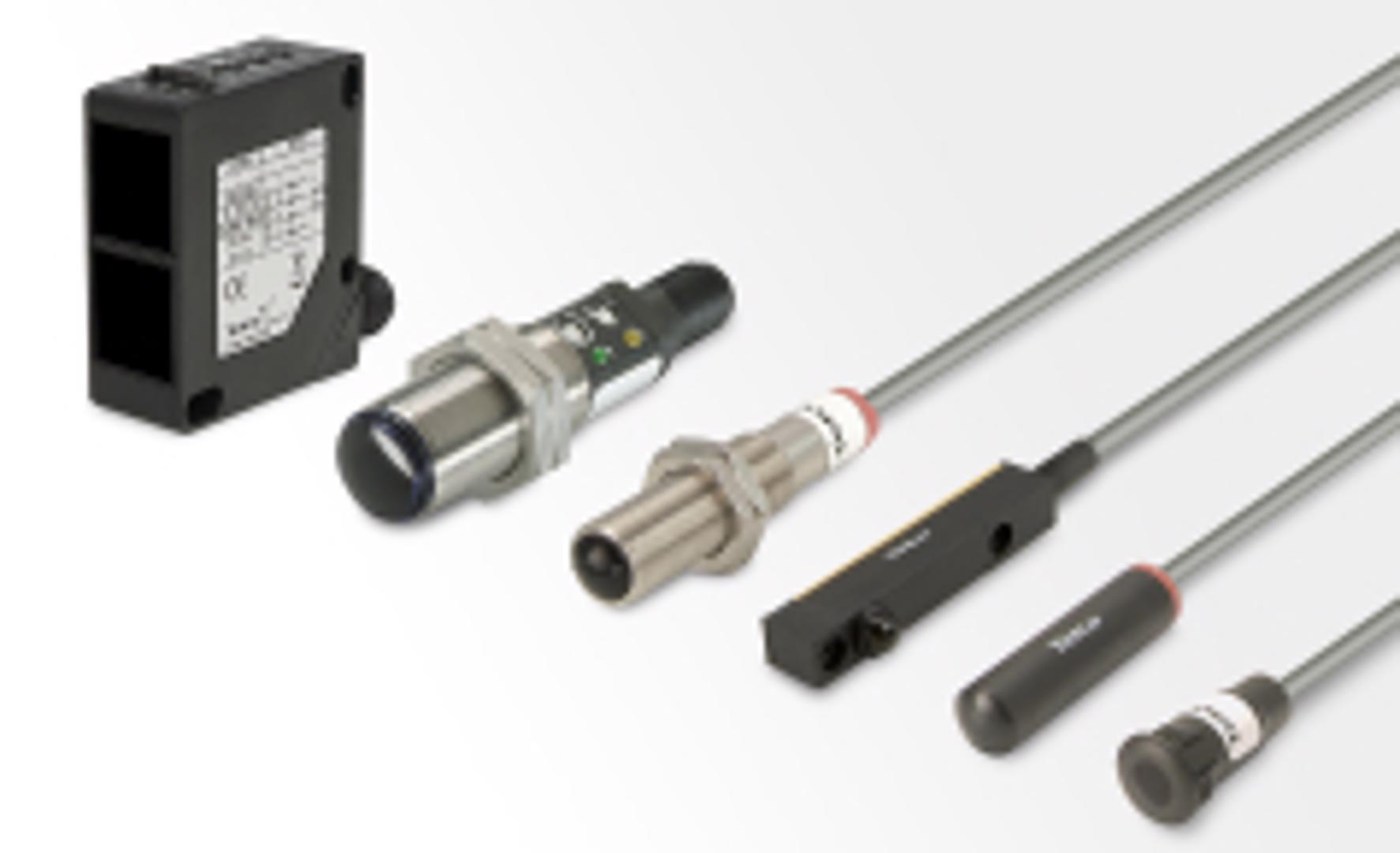

Thru beam photoelectric sensors available with wide range of housing designs and sensing characteristics. Sensing ranges of up to 70 metres. Infrared light source. Highest level of excess gain in thru beam provides reliable sensing through contaminated environments.

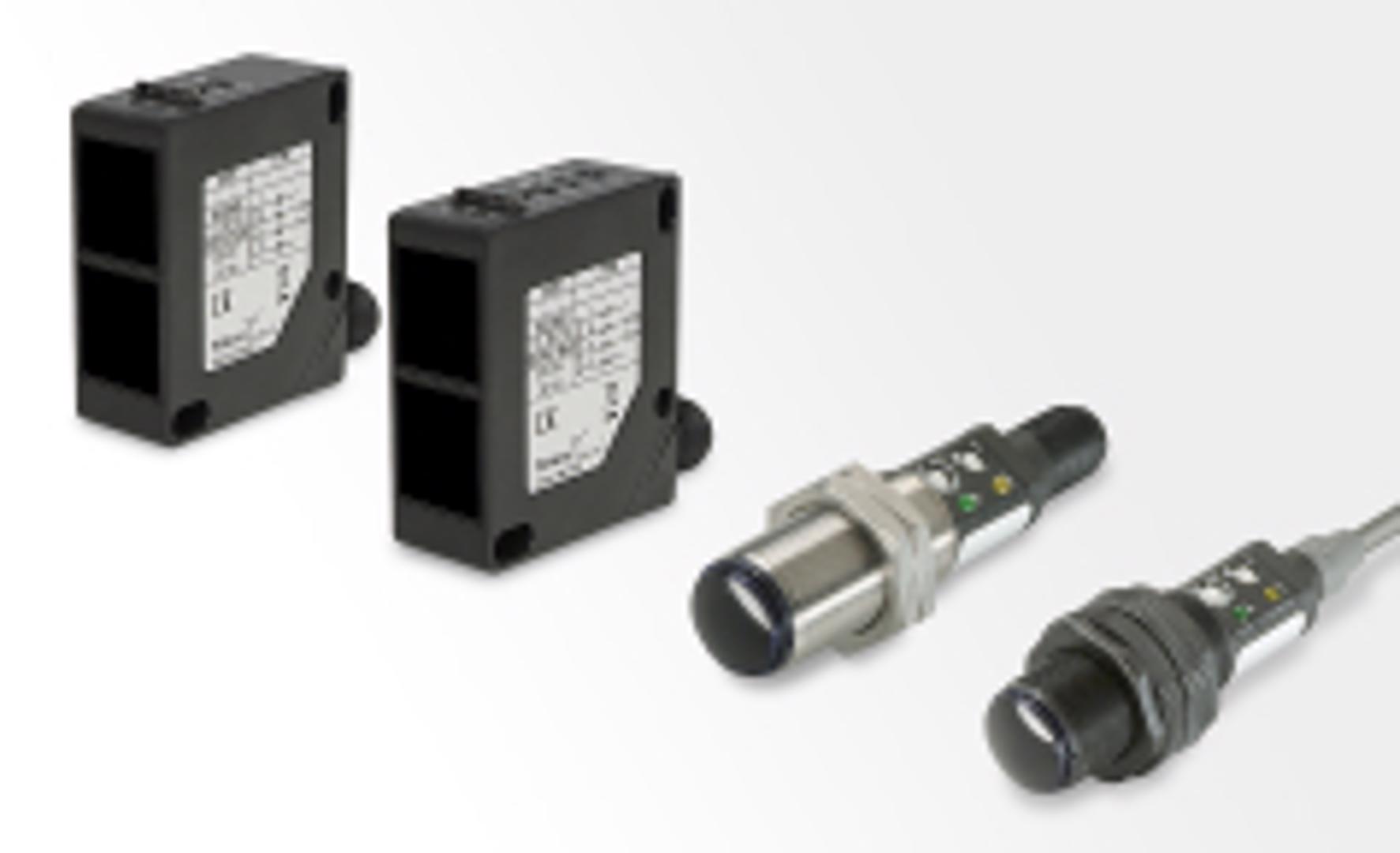

Diffuse proximity photoelectric sensors available in rectangular 50x50 or cylindrical M18 housing design. Sensing ranges of up to 5 metres. Infrared light source.

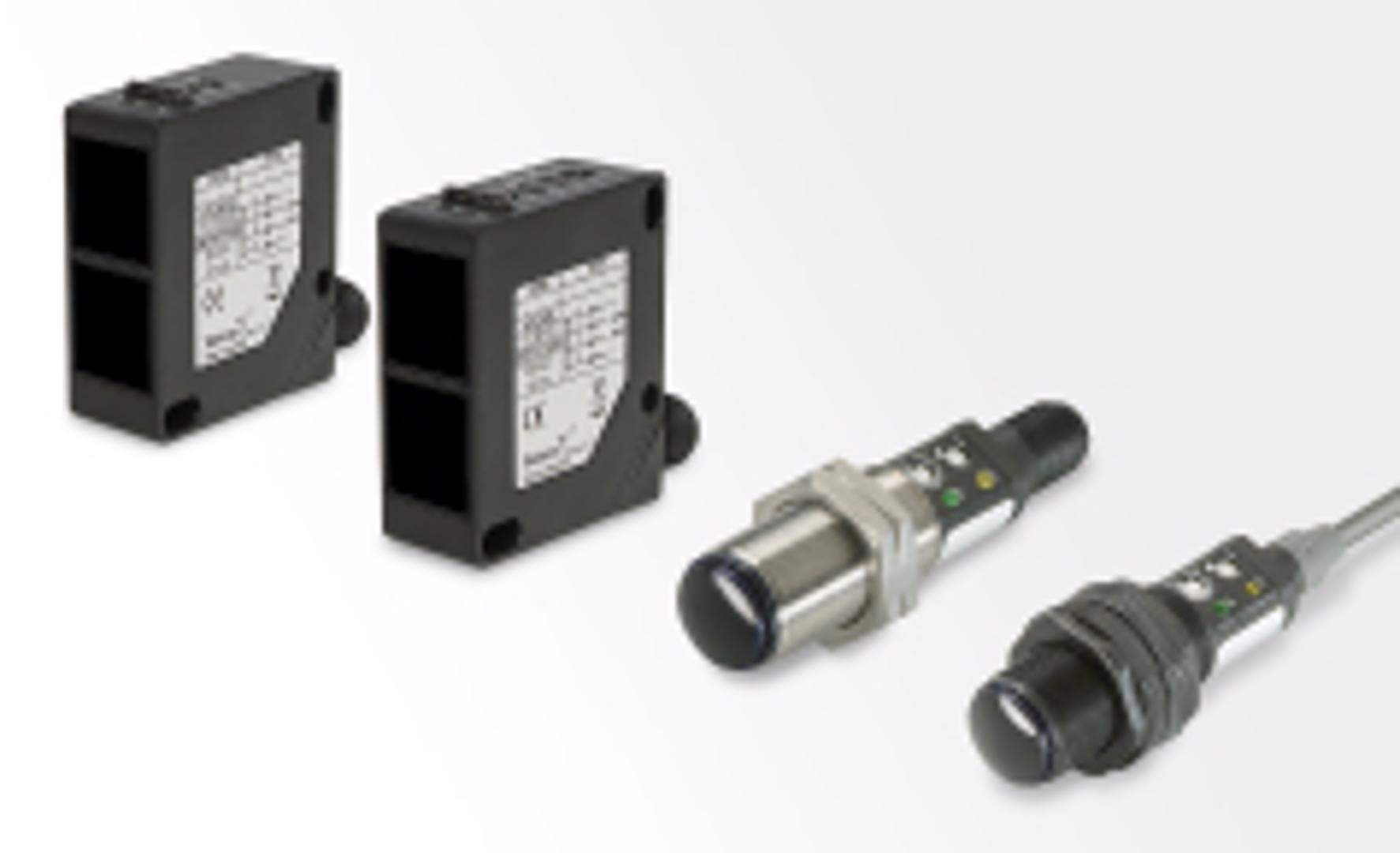

Retro reflective photoelectric sensors available in rectangular 50x50 or cylindrical M18 housing design. Sensing range of up to 12 metres. Infrared light source.

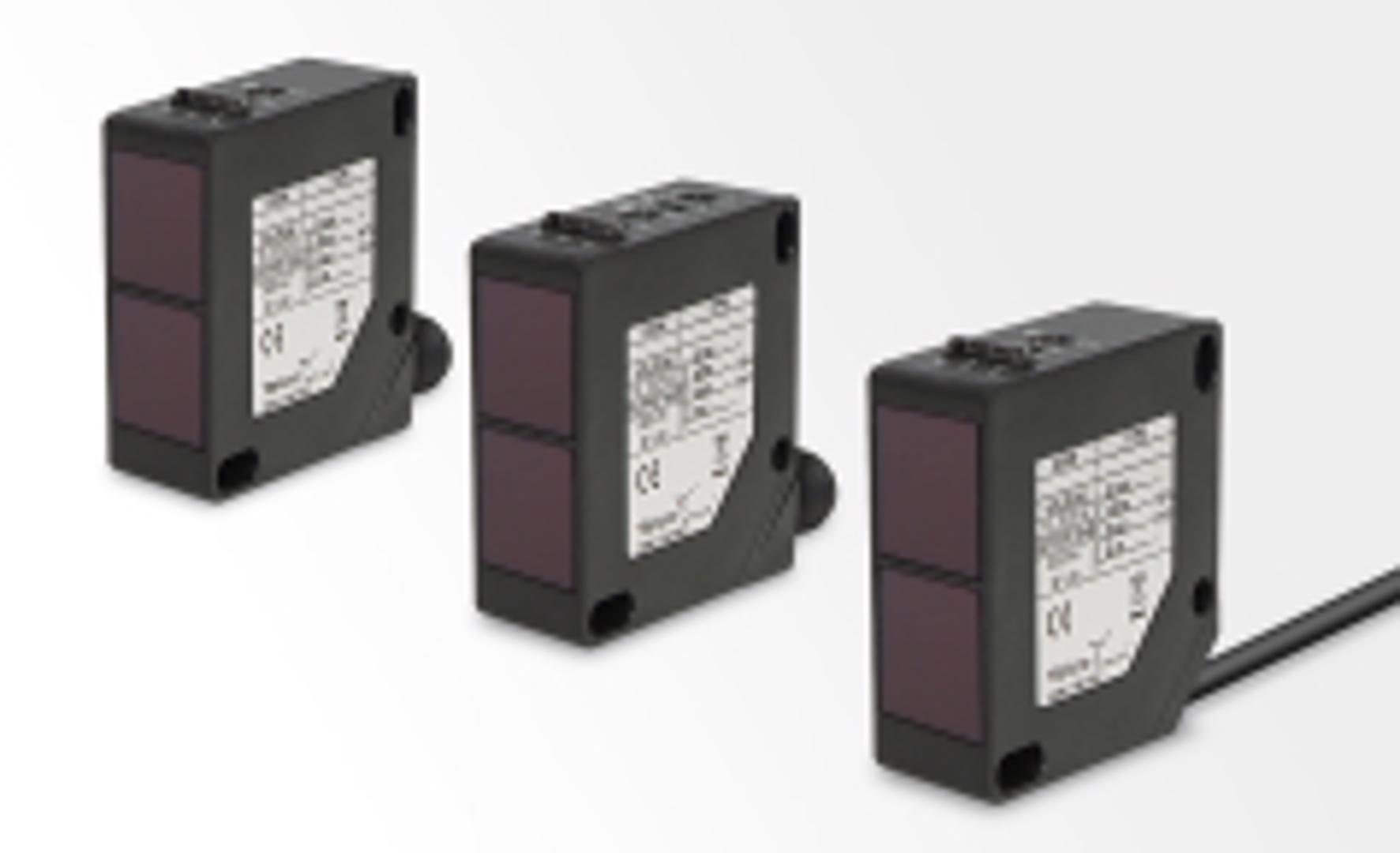

Polarised retro reflective photoelectric sensors available in rectangular 50x50 housing design. Sensing range of up to 10 metres. Red light source. Polarising filters ensures that only light reflected by reflector is sensed, providing reliable detection of shiny and reflective objects.

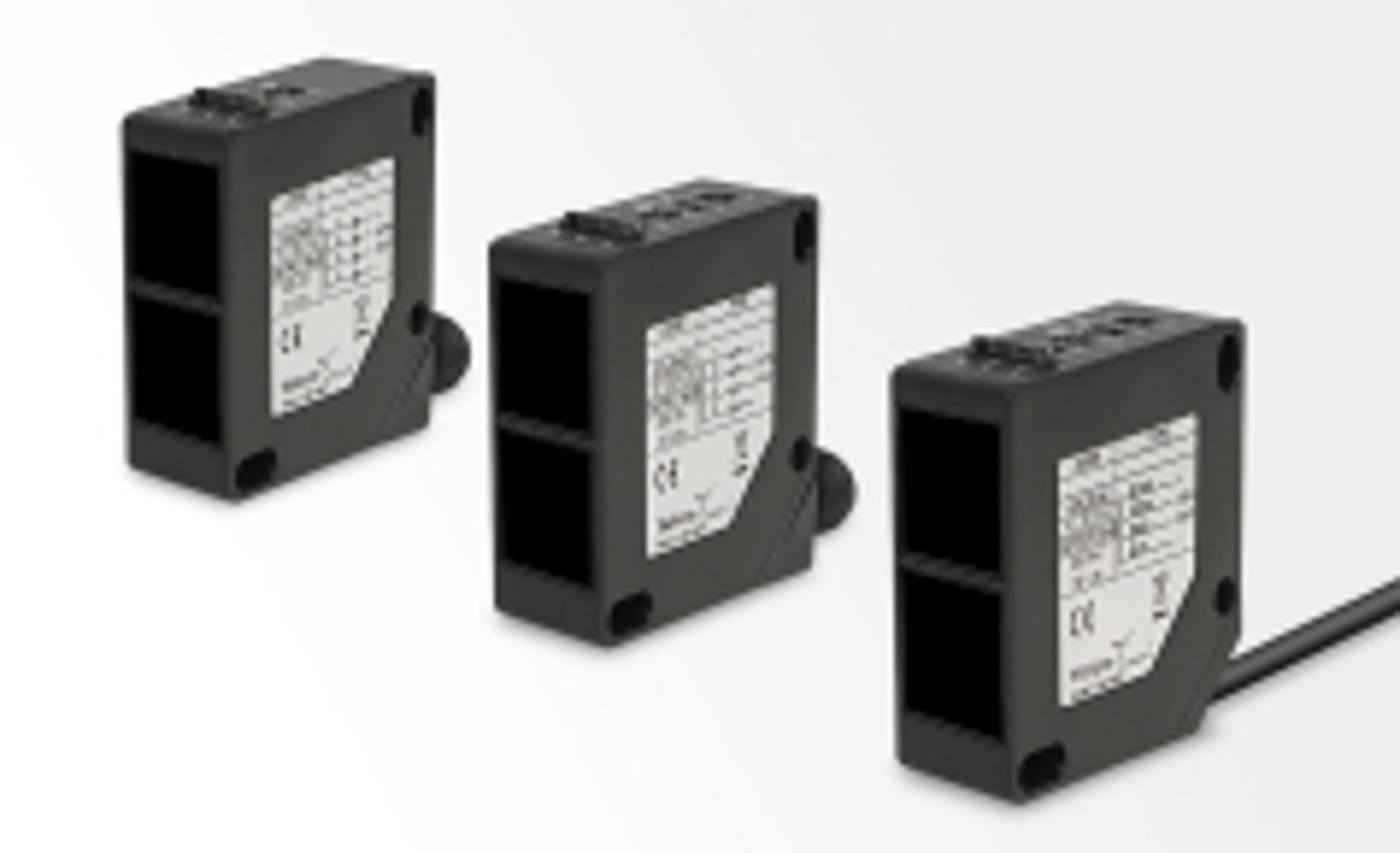

Background suppression photoelectric sensors available in rectangular 50x50 housing design. Sensing range of up to 2 metres. Infrared light source. Object is detected independently of the surface reflectivity, ensuring the background can remain undetected.

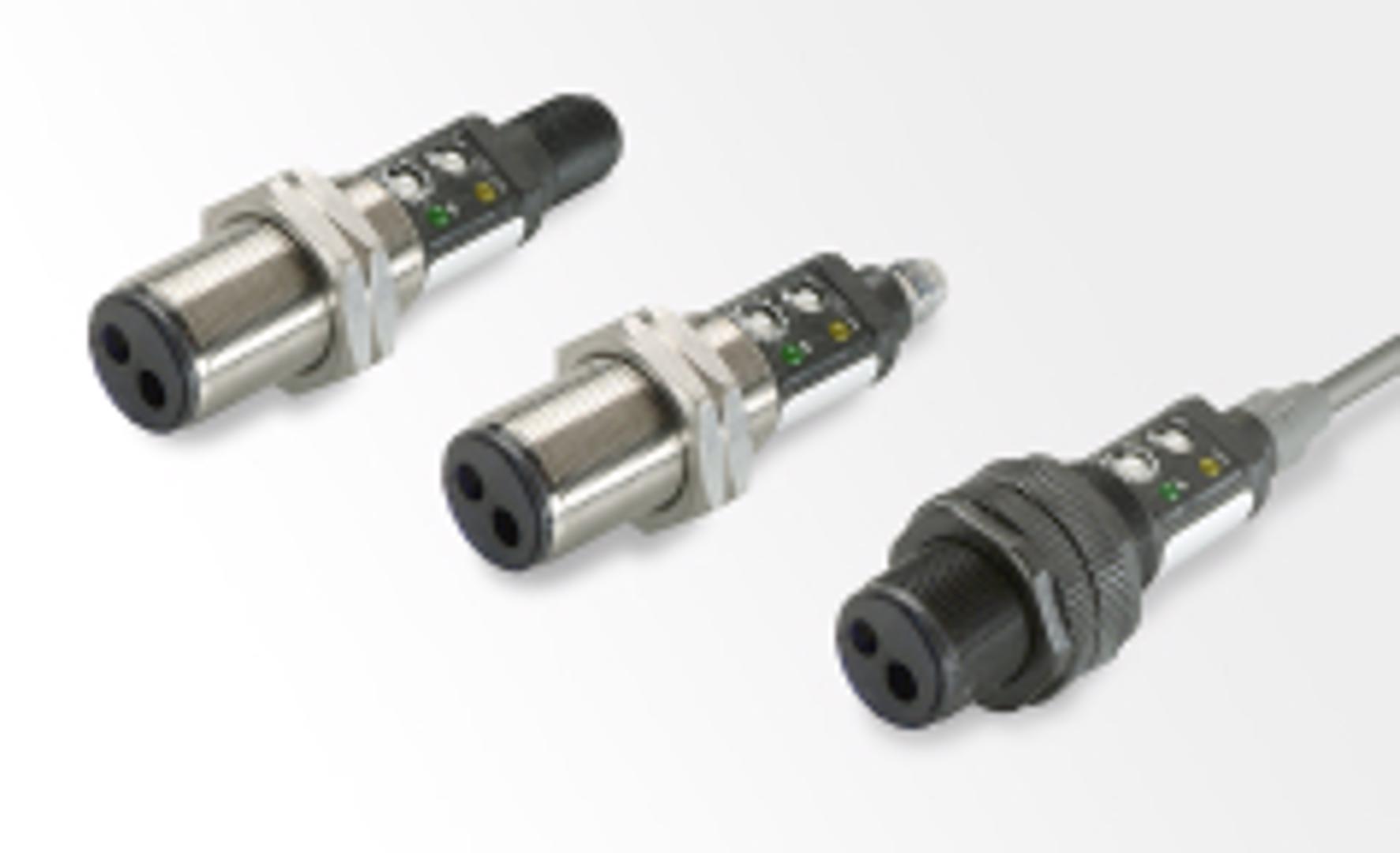

Fibre sensor photoelectric sensors available in cylindrical M18 housing design. Infrared light source. Used in conjunction with separate glass fibre optic cables to conduct transmitted and received light. Thru beam (individual) or diffuse proximity (bifurcated) fibre optic operation mode.

Photoelectric Sensors

Thru Beam

Diffuse Proximity

Retro Reflective

Polarised Retro Reflective

Background Suppression

Fibre Sensor

Product Overview
